ICS 200 / 60


The Integrated Communications System ICS 200/60 uses the most advanced digital technology. To enable a predictive, fast voice communication between internal users, the internal communication is based on modern TDM switching and includes powerful microprocessors, digital signal processors and fast, non-blocking switching components.

200/60 200/60

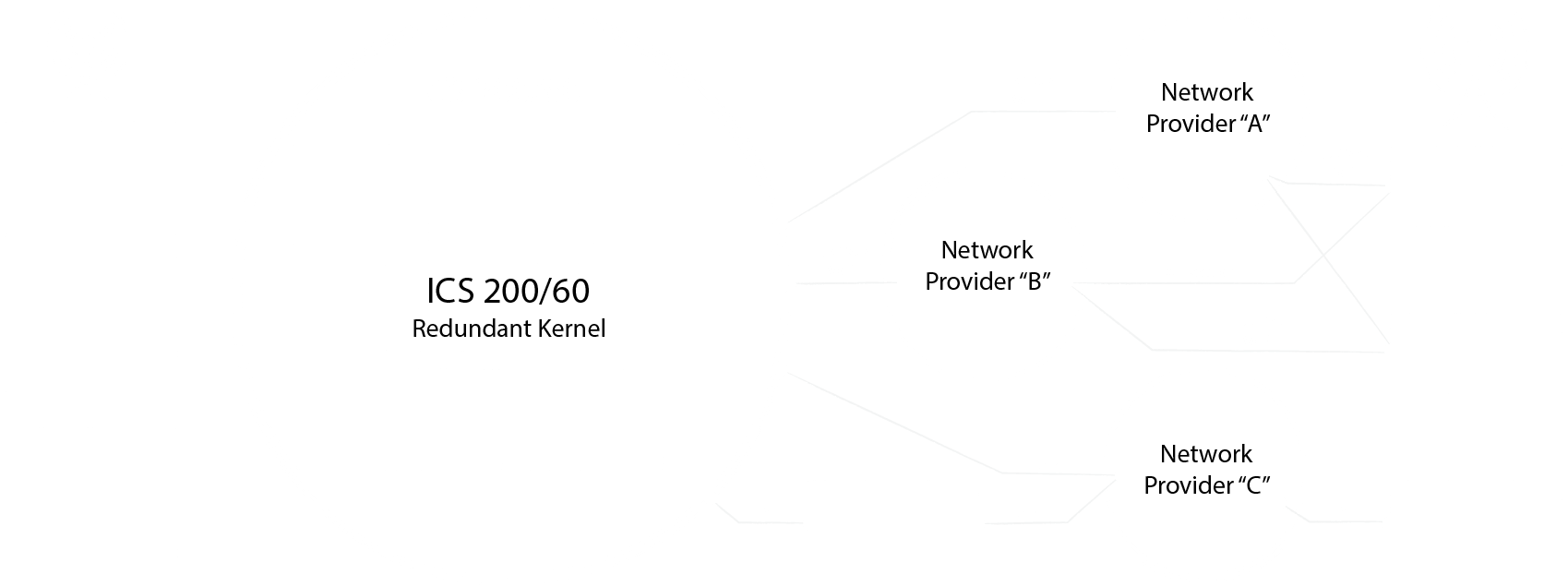

System Overview


The VCS platform ICS 200/60 has been continuously developed to fully
cover the communication needs of ATC, it is a fully digital voice
communication control system (VCCS), which supports:

Fast VHF and UHF communications
(voice and signalling);
Convenient telephone communications
with direct and indirect access;
Fast operational reconfiguration in terms of resources
and functionality of the operator positions;
Integration of private networks
(ATS-QSIG, ATS R2 (MFC R2)
and ATS No.5 EUROCONTROL);
Legal recording at operator positions and
at radio/telephone interfaces;
User definable human-machine interface and
individual operator position set-up;

Several off-the-shelf applications


several
More than 25 years of ATC experience
several
Optimal support and services
several
High quality and reliability
several
Long-term service and
support guarantee
several
Low maintenance and support costs

ICS Sky

Area Control Center ACC

ICS Traffic

International Airport

ICS Compact

Regional airports

ICS Mobile

Mobile civil and military
applications

ICS Connect

Access to legacy and third-party
systems

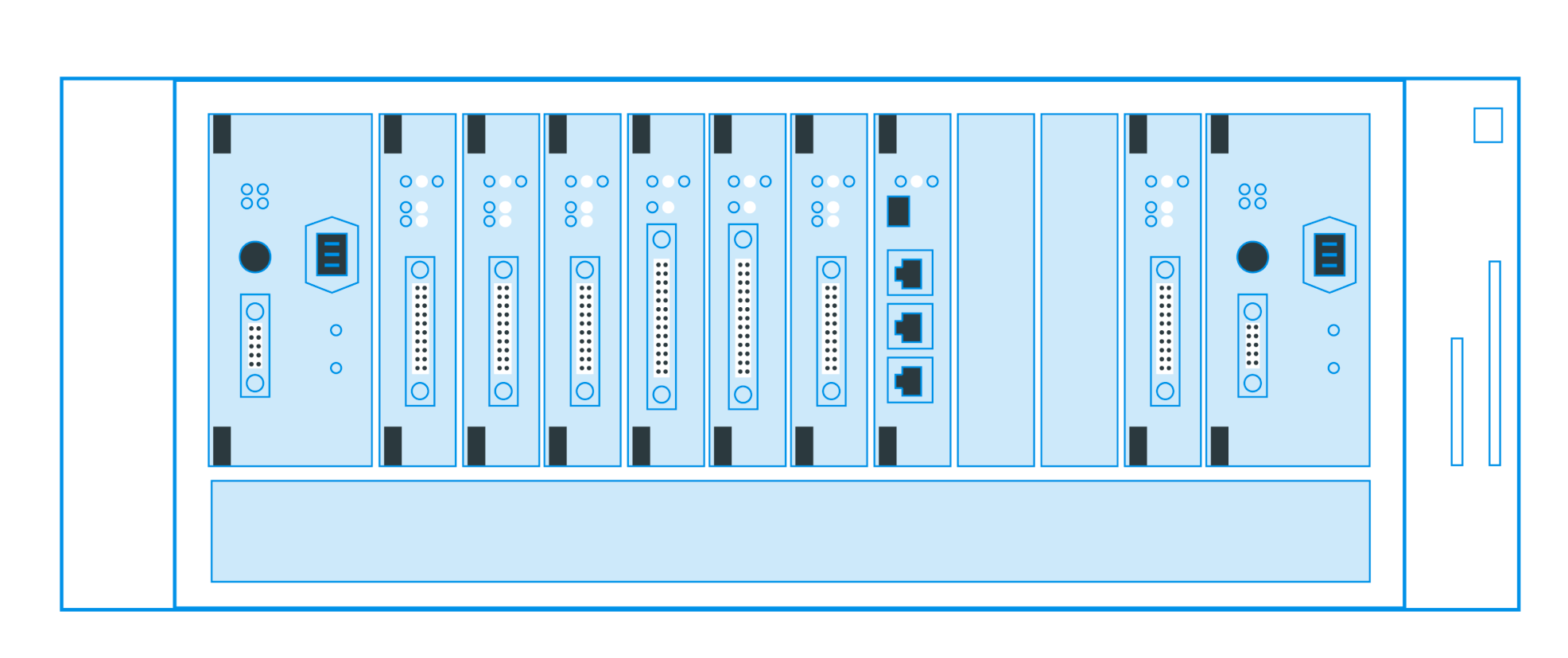

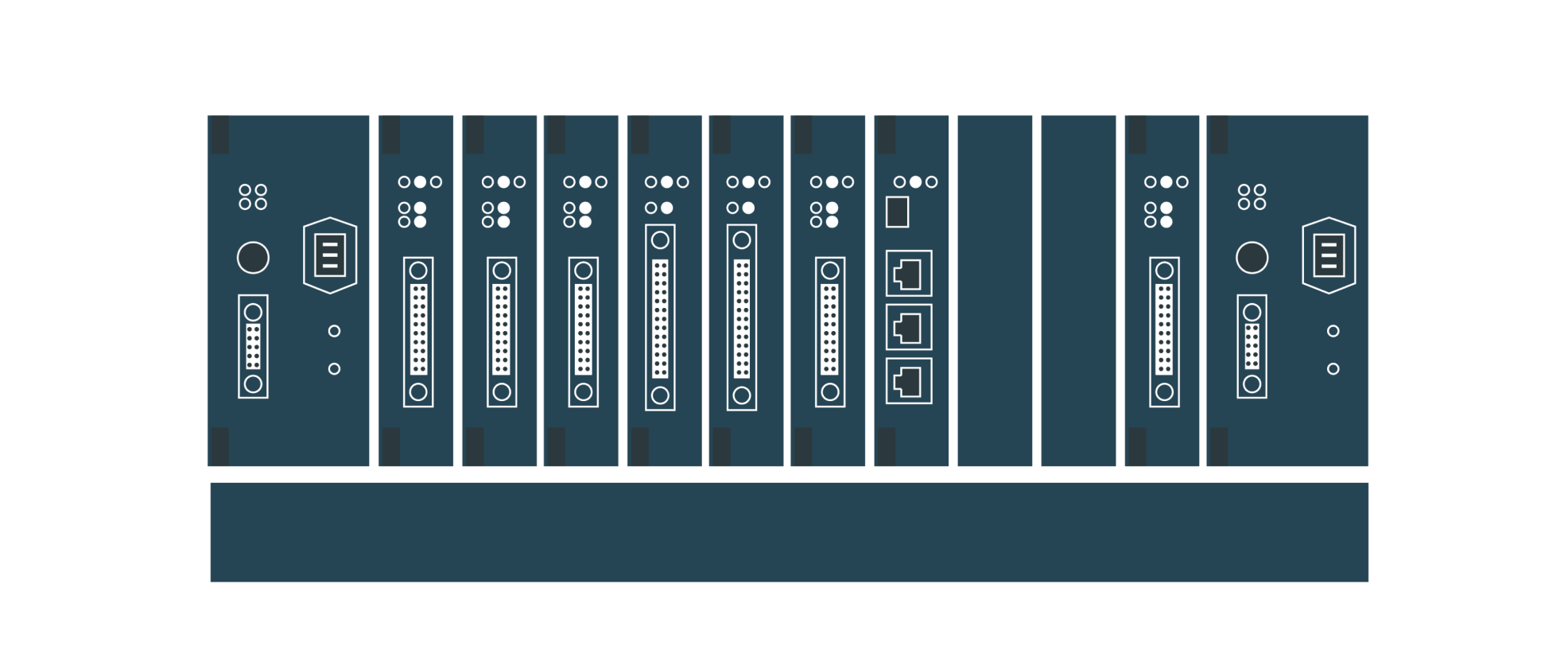

Universal Interface Subracks


Internal communication redundant, TDM–based

Used for local and remote access (GRS)

Support of a mixture of interface types:

SZ.812.010: Universal 2-wire

SZ.814.010: Universal E1/T1

SZ.816.010: VoIP

SZ.818.010: Universal 4-wire E&M

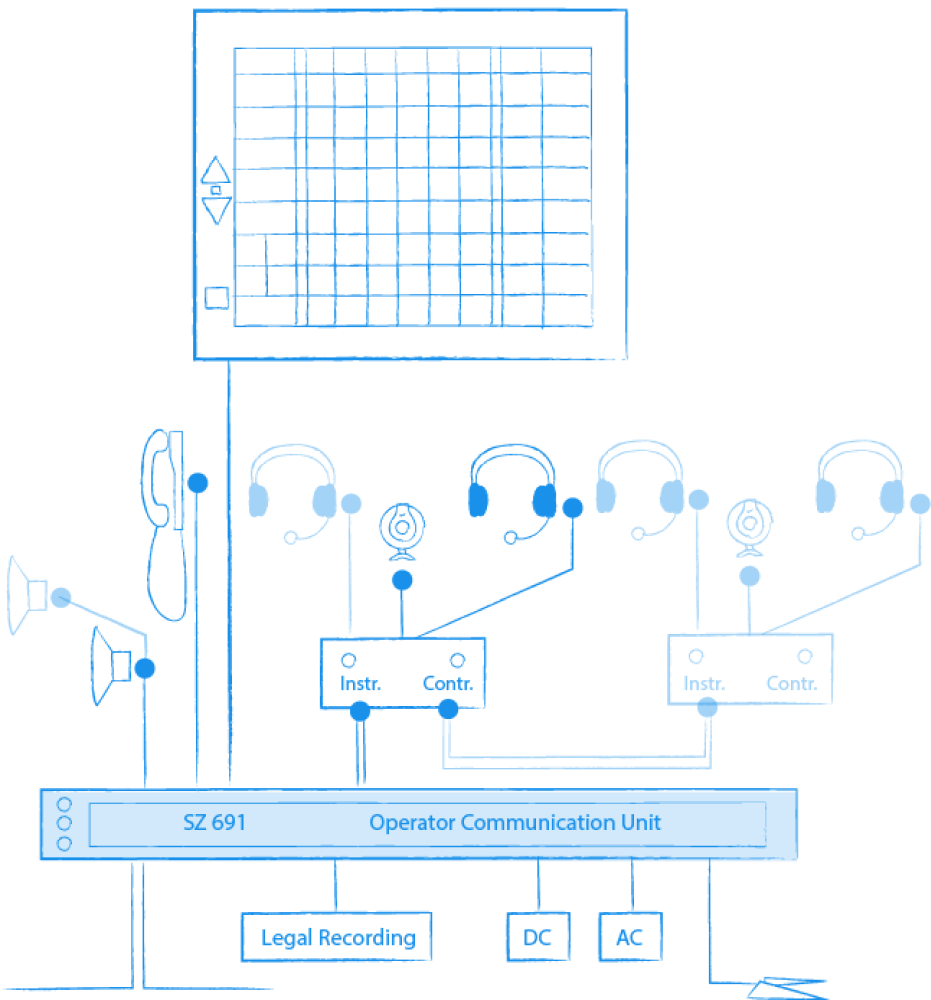

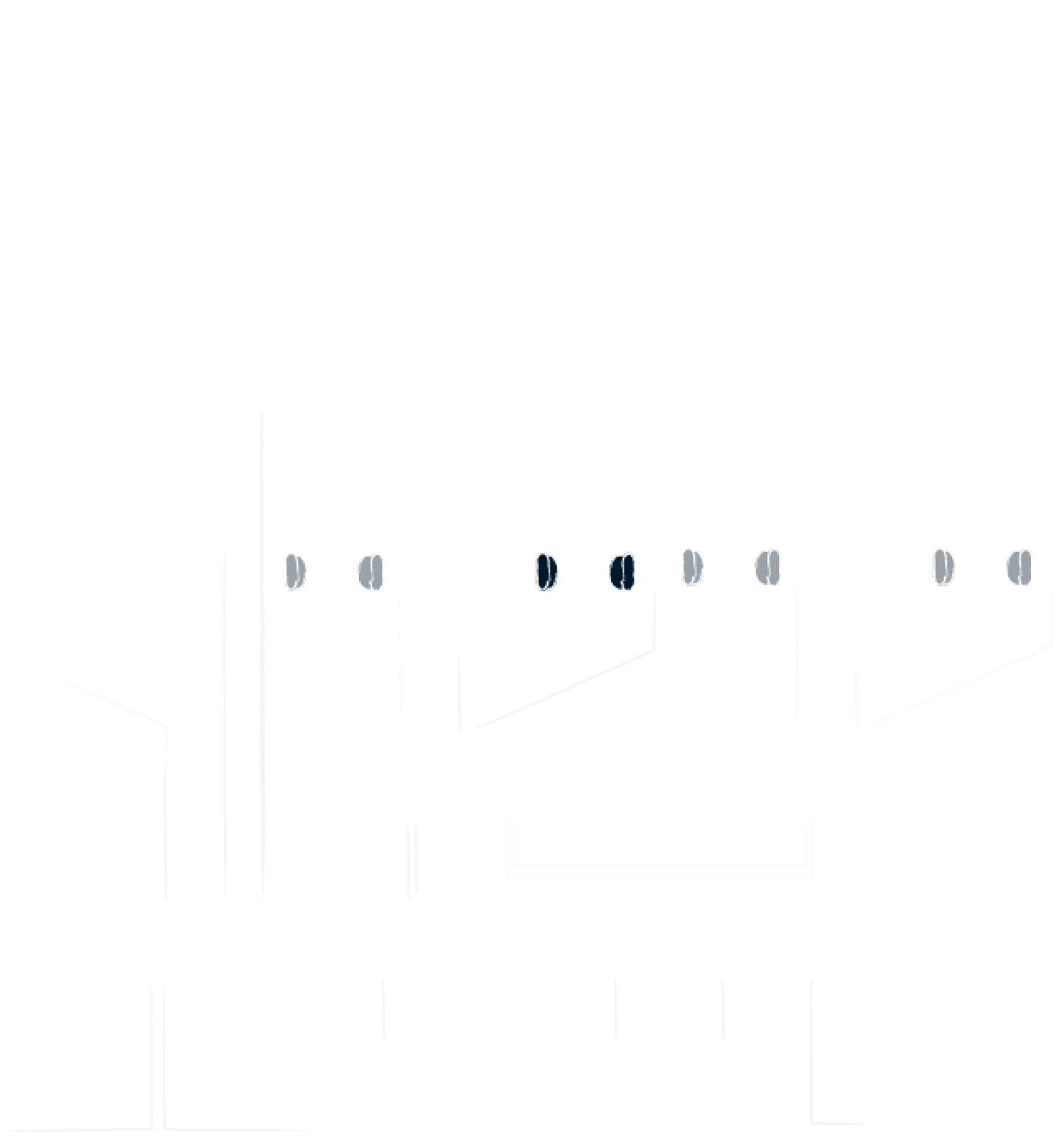

Operator Position


Bright touch panel
Communication unit
Headset(s)
Microphone(s)
Handset
1 2 3 4 5 6 7 9
Loudspeaker(s)
Foot-operated push to talk
Equipment detect supports
automatic audio adjustment
Pre-wired LEMO audio connectors supporting automatic equipment
recognition and adjustment
up to 20 different audio devices

Role dependent user interface


role-photo
Adapted to different tasks in the
same system

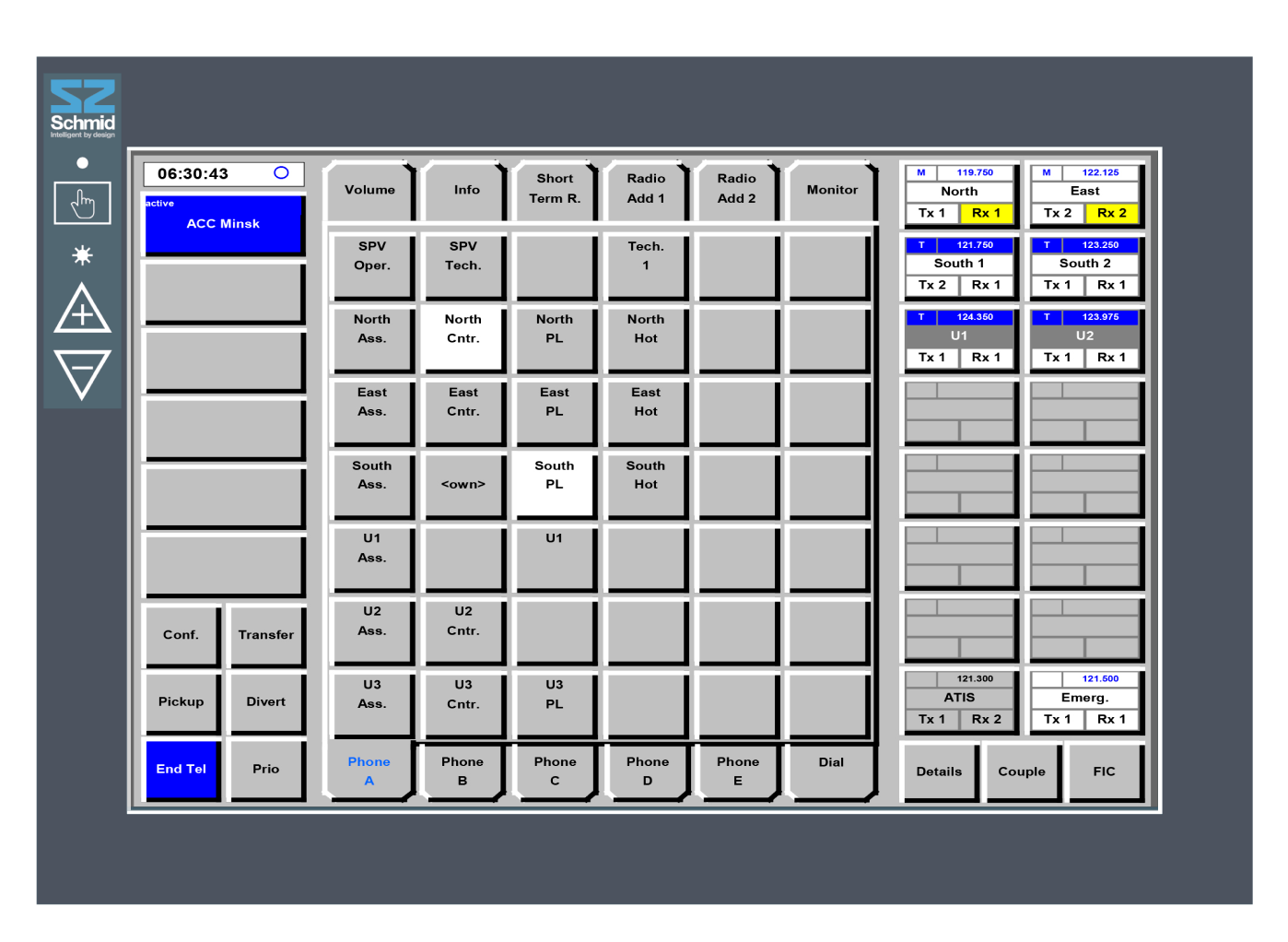

Fast touch panel 12.1” display
Ethernet access
As X-terminal on any other screen
Sharing of applications supported

System Management




Operating without supervision
Customers network
uis-photo uis-photo
One local workstation
Several local workstations

Graphical User Interface


Navigation tree
Overview
Control
1 2 3 4 5 6
Alarm list
Status icons
Event logging
